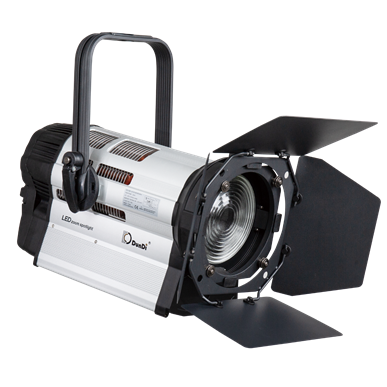

Single color studio TV film spot light

Light source

1、Light source and its place of original : It is our own research parameter technology and ask to custom made by leds factory , single color LEDs module.
2、LEDs light source quantity : 300W adopt 88 pcs LEDs module, single pcs 5W. 200W adopt 88 pcs LEDs module, single pcs 3W.
3、LEDs life : 50000-100000 hours

Products power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : 320W or 230W
3、Power change : There is no power change when the light keep working

Function specific and operation
1、Display screen : it is OLED screen , full Chinese and English operate,screen size 30×15mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew , it can use our own research programmer machine to refresh software,even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control ,knob to control dim and zoom
5、Control Signal : DMX control ,with RDM function
6、DMX channel : 3 channels
7、Dimming : 16 bit above smooth flicker-free dimming,dim not delay, dim freshen frequency 20k(20000Hz) above
8、Zoom model : electronic zoom or manual knob zoom, adopt out lens extendable to zoom , or fixed the out lens,use the inner assemble extendable optics to zoom
9、Motor reset : it can not reset when you turn on the light , it keep last time’s setting
10、Radiation : use custom made intelligently fan speed adjustable , the fan not move when dim less 20%
11、Noisy : the fan not move when dim less 20%,no noisy at all . when the fan running at the biggest power 300W version noisy less than 38dB at 1 meter. 200W version noisy less than 20dB at 1 meter . also there is no fan version option
12、Ambient temperature : -25℃ to 40℃
13、IP rate : IP20

Light effects character and parameter
1、CCT : 3200k or 5600k option , can custom made CCT according to customer’s requires.
2、CRI : ≥95
3、TLCI : ≥95
4、Luminous flux : 300W（3200K/15600 lm，5600K/19600 lm）， 200W（3200K/11300 lm，5600K/13800 lm）
5、Beam angle : 12-60° tuneable .
6、Optics system : out lens is ∮162 fresnel lens, inner adopt mix color super even optics modules research by ourselves

Products materials, light case surface treatment ,accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray ,light case color can be custom made according to customer’s require
3、Standard accessories match : barndoor, power input/output plug, signal connector 1 pair . can custom made match according to customer’s require
4、Barndoor : removable barndoor and rotate 360 °
5、About battery : it can match portable battery 110-240V from third party ,can not match battery less than 100V

Main difference between fan version and no fan version : No fan version only have 200W , their all data are same but length longer 5 cm , more weight 0.7kg and price different
