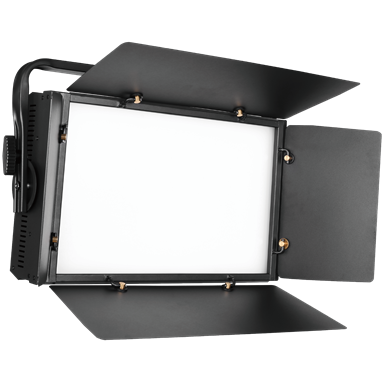

Single color studio TV film panel light

Light source
1、Light source and its place of original : It is our own research parameter technology and ask to custom made  by leds factory , item No. is 2835 warm white or cool white
2、LEDs light source quantity : adopt 960 pcs LEDs warm white or cool white
3、Every single pcs power : 0.6W , actually use power 0.2-0.35W , so that to keep optical high efficiency ,LEDs low temperature and long life
4、LEDs life : 50000-100000 hours

Product power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : 310W,  210W or 160W
3、Power change : There is no power change when the light keep working

Function specific and operation
1、Display screen : it is LCD screen , full Chinese and English operate,screen size 35×29mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew , it can use our own research programmer machine to refresh software,even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control ,knob to control dim
5、Control Signal : DMX control ,with RDM function
6、DMX channel : 1 channels
7、Dimming : 16 bit above smooth flicker-free dimming,dimming not delay,frequency 20k(20000Hz) above
8、Radiation : 300W and 200W use custom made intelligently fan  and speed adjustable ,  the fan not move when dim less 50% . 150W version without fan
9、Noisy : 300W and 200W fan not move when dim less 50%,no noisy at all . when the fan running at the biggest power 300W version noisy less than 25dB at 1 meter. 200W version  noisy less than 18dB at 1 meter . 150W version without fan, no noisy at all
10、Ambient temperature : -25℃ to 40℃
11、IP rate : IP20

Light effects character and parameter
1、CCT : 3200k or 5600k option , can custom made CCT according to customer’s requires.
2、CRI : average ≥95
3、TLCI : average ≥95
4、Luminous flux : 300W(5600K/ 25600 lm、3200K/ 22900 lm)200W(5600K/ 19200 lm、3200K/ 17400 lm)150W(5600K/ 14900 lm、3200K/ 12500 lm)
5、Light-emitting area : 420X260mm
6、Beam angle : 105° (the angle in 50% lux of centre )

Products materials, light case surface treatment ,accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray, light case color can be custom made according to customer’s require
3、Standard accessories match : barndoor, power input/output plug, signal connector 1 pair .  can custom made match according to customer’s require
4、Soft lens use : front lens changeable
5、Barndoor use : barndoor moveable
6、Grate use : The grate install and removable , can custom made different grate
7、About battery : it can match portable battery 110-240V  from third party .  can not match battery less than 110V

Product  size and weight
1、Inner size : with barndoor  56X14.6X36cm,without barndoor 56X11.5X34.5cm
2、packing size : 62X23.5X42cm
3、Net weight : 9.2kg (light 7.5kg, barndoor 1.7kg )
4、Gross weight : 10.5kg
