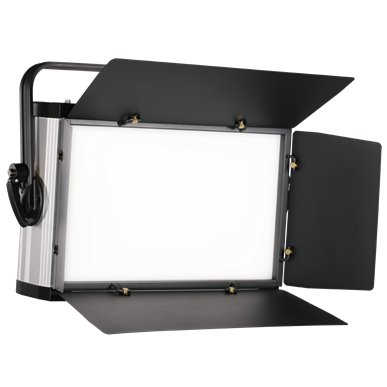

LED full color studio TV film panel light

Light source
1、Light source and its place of original : It is our own research parameter technology and ask to custom made  by leds factory, item No. is 2016 single, red, green, blue and ware white
2、LEDs light source quantity : adopt 240 pcs red, 240 pcs green, 240 pcs blue, 480 pcs warm white
3、Every single pcs power : 0.6W
4、LEDs life : 50000-100000 hours

Products power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : DD-SPC300/300W(2700-10000K white 320W,red 70W、green 130W、blue130W)  DD-SPC200/200W(2700-10000K white 210W,red 60W、green 110W、blue110W)
3、Power change : there is power change when it start work and during working, because different color led source brightness are following the temperature become less, in order to reduce the brightness difference and spectrum difference, we use software specially deal with it, so when the light start and working there is power change, CCT different, power different , when it is warm white CCT power change bigger, when it is cool white CCT, the power change less

Function specific and operation
1、Display screen : it is LCD screen , full Chinese and English operate,screen size 35×29mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew,it can use our own research programmer machine to refresh software, even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control, knob to control dim, CCT, DUV
5、Control Signal : DMX control, with RDM function
6、DMX channel : there are 3 channel and 9 channel models option
7、Dimming : 16 bit above smooth flicker-free dimming, dim not delay, dim freshen frequency 20k(20000Hz) above
8、CCT tunable : there is smooth and no flicker when tuning the CCT, 0.5% brightness still can tun CCT
9、Radiation : DD-SPC300/300W use custom made intelligently fan  and speed adjustable  ,  the fan not move when dim less 50% .DD-SPC200/200W without fan
10、Noisy : DD-SPC300/300W the fan not move when dim less 50%,no noisy at all . when the fan running at the biggest power noisy less than 28dB at 1 meter. DD-SPC200/200W without fan and no noisy at all
11、Ambient temperature : -25℃ to 40℃
12、IP rate : IP20

Light effects character and parameter
1、CCT : 2700-10000k tunable by controller or knob manual tunable . when use knob adjust CCT  will show in the screen, 100K for one level , when it is tunning the brightness difference less than 10%.
2、CCT and color mix accordance : Multi units color and CCT difference are very rare
3、CRI : average ≥94
4、TLCI : average ≥93
5、DUV : it is adjustable on plus-minus , average adjustable from +0.018 to -0.02 , it can adjust by manual knob or controller, when it use knob to adjust shows on the screen
6、Color : it can 360 °spectrum color mix, by red, green, blue ,warm white 4 color can mix all kinds of color
7、Luminous flux : DD-SPC300/300W  (2700K/20200 lm、3200K/20700 lm、5600K/19100lm、10000k/18200 lm、single red /2500 lm、single green /6500 lm、single blue /1500 lm) DD-SPC200/200W(2700K/14200 lm、3200K/14400 lm、5600K/13800lm、10000k/13200 lm、single red /2200 lm、single green /5800 lm、single blue/1400 lm)
8、Light-emitting area : 435X255mm
9、Beam angle : 105° (the angle in 50% lux of centre )

Products materials, light case surface treatment ,accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray ,light case color can be custom made according to customer’s require.
3、Standard accessories match : barndoor, power input/output plug, signal connector 1 pair .  can custom made match according to customer’s require.
4、Soft lens use : front lens changeable
5、Barndoor use : barndoor moveable
6、Grate use : The grate install and removable , can custom made different grate
7、About battery : it can match portable battery 110-240V  from third party . can not match battery less than 110V

Product  size and weight
1、Inner size : with barndoor  57X15X39cm,without barndoor 57X11.5X39cm
2、Packing size : 63X24X48cm
3、Net weight : 11.1kg (light 9.5kg, barndoor 1.6kg )
4、Gross weight : 12.8kg
