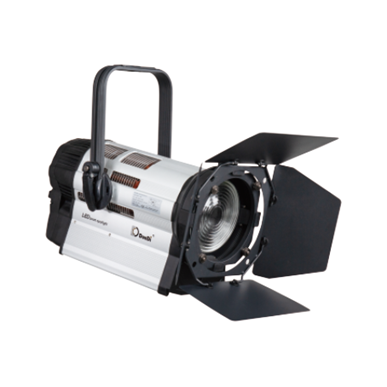

CCT tuneable studio TV film spotlight

Light source
1、Light source and its place of original : It is our own research parameter technology and ask to custom made  by leds factory , 2 colors LEDs module.
2、LEDs light source quantity : 300W adopt 88 pcs LEDs module,  44 pcs warm white, 44 pcs cool white ,single pcs 8W. 200W adopt 88 pcs LEDs module, 44 pcs warm white, 44 pcs cool white ,single pcs 5W
3、LEDs life : 50000-100000 hours

Products power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : DD-SW300/320W,  DD-SPW200/230W
3、Power change : There is no power change when the light keep working or tuning CCT

Function specific and operation
1、Display screen : it is OLED screen , full Chinese and English operate,screen size 30×15mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew , it can use our own research programmer machine to refresh software,even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control ,knob to control dim, CCT and zoom
5、Control Signal : DMX control ,with RDM function
6、DMX channel : 4 channels
7、Dimming : 16 bit above smooth flicker-free dimming,dim not delay, dim freshen frequency 20k(20000Hz) above
8、CCT tuneable : there is smooth and no flicker when tuning  CCT , 0.5% brightness still can tun CCT
9、Zoom model : electronic zoom or manual knob zoom, adopt out lens extendable to zoom , or fixed the out lens,use the inner assemble extendable optics to zoom
10、Motor reset : it can not reset when you turn on the light , it keep last time’s setting
11、Radiation : use custom made intelligently fan speed adjustable  ,  the fan not move when dim less 20% ,200W version without fan
12、Noisy : the fan not move when dim less 20%,no noisy at all . when the fan running at the biggest power 300W version noisy less than 28dB at 1 meter. 200W version noisy less than 20dB at 1 meter . also there is no fan version option
13、Ambient temperature : -25℃ to 40℃
14、IP rate : IP20

Light effects character and parameter
1、CCT : 2700-6500k tunable by controller or knob manual tunable . when use knob adjust CCT  will show in the screen, 100K for one level , when it is tuning ,big angle and small angle’s CCT average difference less than 3% and less than 3% difference in the beam center and the edge
2、CRI : average ≥95
3、TLCI : average ≥95
4、Beam angle : 12-60° tunable
5、Luminous flux : 300W(2700K/13300 lm、6500K/16700lm),200W(2700K/10200 lm、6500K/12600lm)
6、Optics system : out lens is ∮162 fresnel lens, inner adopt  mix color super even optics modules research by ourselves

Products materials, light case surface treatment, accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray ,light case color can be custom made according to customer’s require
3、Standard accessories match : barndoor, power input/output plug, signal connector 1 pair .  can custom made match according to customer’s require.
4、Barndoor : removable barndoor and rotate 360 °
5、About battery : it can match portable battery 110-240V  from third party ,can not match battery less than 100V
Main difference between fan version and no fan version : No fan version only have 200W , their all data are same but length longer 5 cm , more weight 0.7kg and price different
